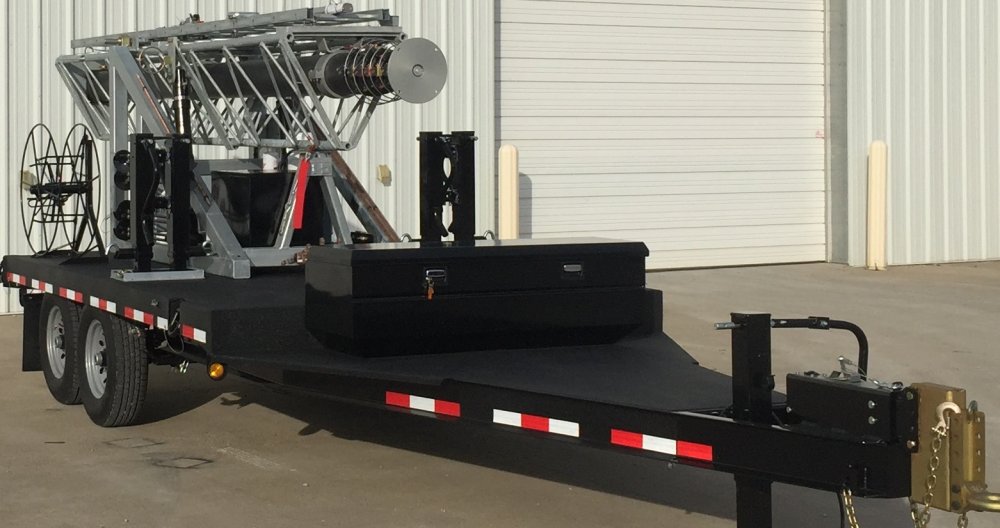

SRS-M Series

• Multi-terrain, C-130 Aircraft, Flatbed, Rail & Sea Transport Capabilities; Commercial and Military Configurations
• Custom Drawbar Trailer; Electric or Hydraulic Brakes; 7-Blade Commercial or 12-Pin Military Connector
• Heavy-duty Tire and Wheel Package; Transport Dims: 24'L-30'L x 8'W x 8'3"H (7.3m-9.14m L x 2.44m W x 2.53m H); Deployed Dims: +/-32’L x 22’W (9.75m L x 6.7m W)
• 15,000 lb (6,803 kg) Capacity GVWR; to 6,000 lbs (2,721 kg) of Payload Capacity; HD Tire/Wheels; Platform to +/-9'L x 8'W x 2'3"H (2.74m L x 2.44m W x .70m H)
• Mil-Std 209K Tie Down & Lifting Lugs; Arctic/Desert Sealed Wiring Package; 12V/24V LED or Blackout Lights
• Heavy-Duty Locking Pneumatic Mast, Extended Heights to 100’ (30m) AGL; Payload to 1,200 lbs (544 kg)
• Tandem Hydraulic Cylinder or HD Electric Winch Tilt System; Enclosed ¾-HP Compressor for Pneumatic Mast Operation
• Mast-top Access Ladder with Optional OSHA-compliant Fall Arrest; Ground Level & Optional Elevated Mast Controls
• Hydraulic & Pneumatic Safety Devises; Power Generation Alternatives; 120-220VAC/60-50Hz Configurations
