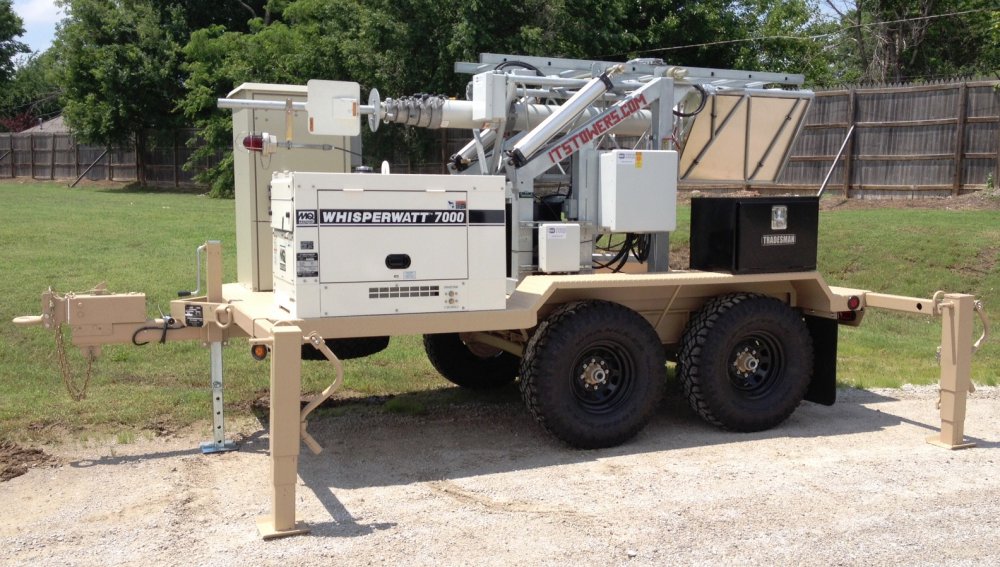

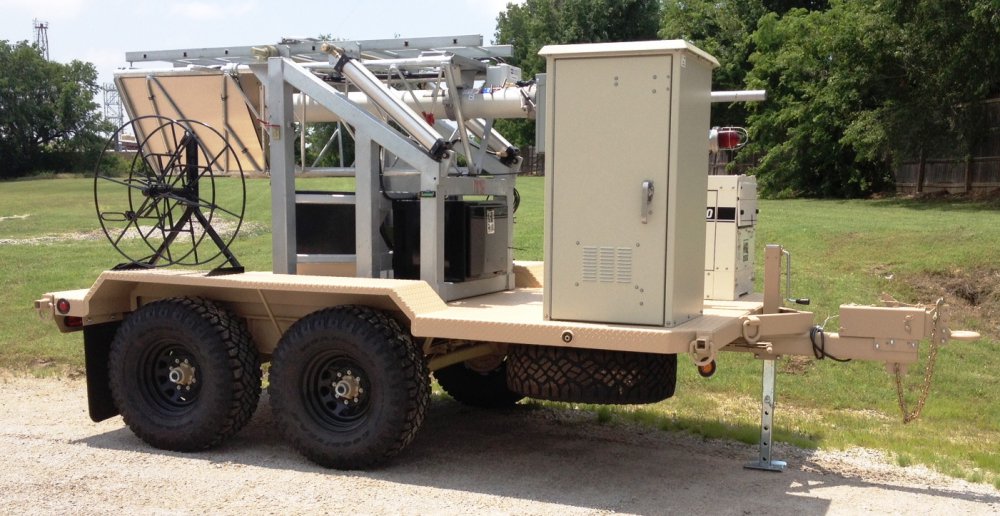

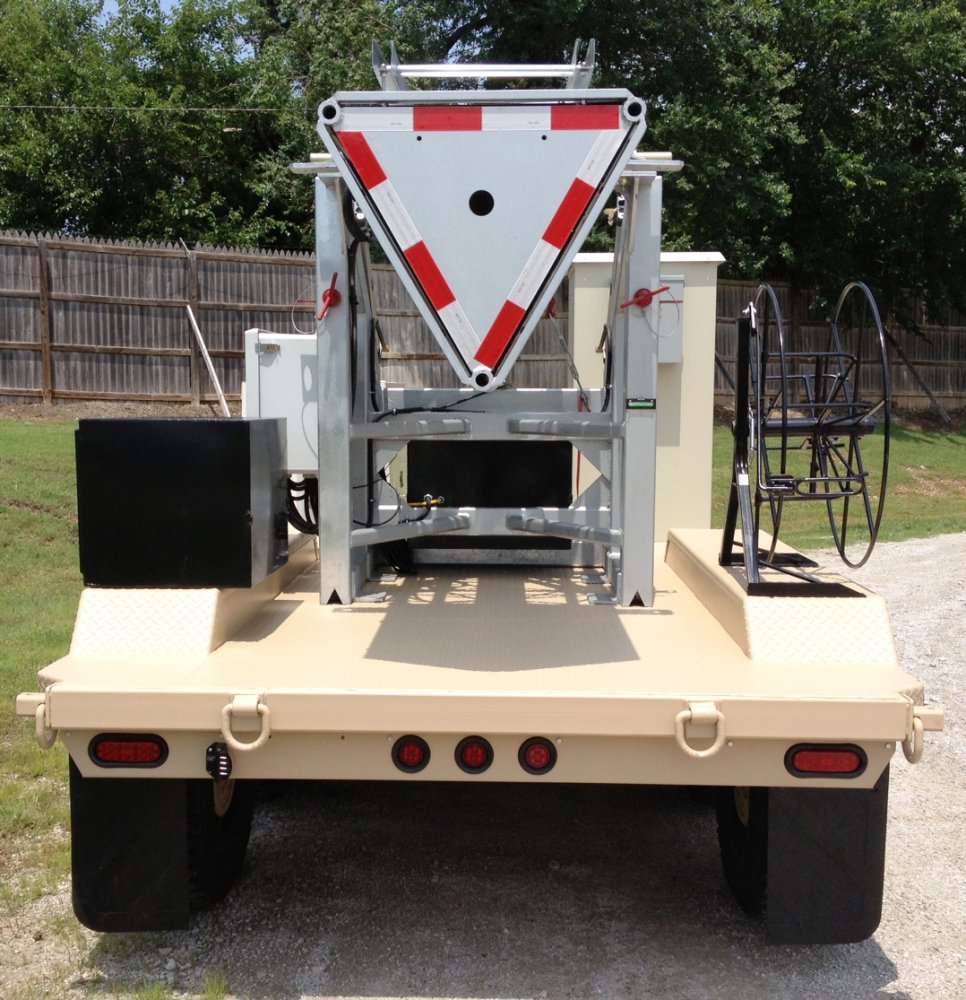

RD-T Series

• Tandem Torflex Axle Trailer; HD Multi-terrain Transport/Deployment Capabilities; Assembled Containerization
• 12,000 lb (5,442 kg) Capacity GVWR; to 6,000 lb (2,721 kg) Payload Capacity; Outrigger Stabilization; 315/75 R16 Mud Terrain Tires
• DOT-compliant Hydraulic Braking System; Outrigger Stabilization; 12V/24V LED Lights; Tie-Down and Lifting Lugs
• Transport Dimensions: +/-16'5” – 18’6”L x 7'1”W x 7’8"H (5m L-5.67m L x 2.16m W x 2.38m H); Deployed Dimensions: +/-16’5”L x 14’3”W (5m L x 4.36m W)
• Tandem Hydraulic Cylinder or HD Electric Winch Tilt System, ¾-HP Enclosed Compressor; Optional Ladder with OSHA-compliant Fall Arrest
• Heavy-Duty Locking Pneumatic Mast, Extended Heights to 78’ (23.8m) AGL; Payload to 450 lbs (204 kg)
• Ground Level & Optional Elevated Mast Controls; Generator & Fuel Capacity Options; 120-220VAC/60-50Hz Configurations
